ros2 topic list Colorization
When you run ros2 topic list, DendROS colors each topic with its primary publisher's group color, adds publisher and subscriber count indicators, and supports badge labels — the same colors and config you set up for ros2 launch. Running ros2 topic list -v gets minimal formatting: bold section headers and dimmed type annotations.

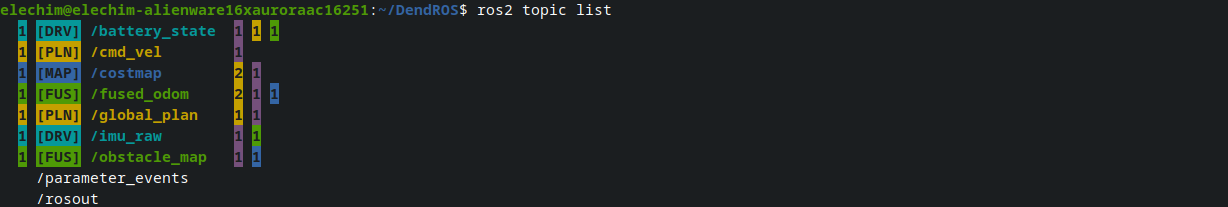

What it looks like
What gets colored
Topic name
Each topic is colored with the group color of its primary publisher — the first publisher node reported by the ROS graph. If that node has a configured group, the topic name is rendered in that color. A group badge is shown to the left of the topic name when show_tag_cli is enabled and the group has a label.
If a topic has no publishers or its publishers don't match any group, the topic falls back to unmatched_color (if set), dim (if dim_unmatched is true), or plain white.
Publisher count blocks
To the left of the badge and topic name, DendROS shows one inverted-color count block per publisher group. Each block shows how many publishers of that group color are advertising this topic. Multiple groups produce multiple adjacent blocks. The blocks are right-aligned across all topics so names stay in a consistent column regardless of how many groups are publishing.
Subscriber count blocks
To the right of the topic name (and type annotation if -t is used), DendROS shows subscriber count blocks using the same inverted-color format. Subscriber blocks are left-aligned across all topics so they start at a consistent column.
System topics
/parameter_events and /rosout are always shown plain — no color, no badge, no count blocks. They are excluded from the graph query entirely. Their names are still aligned to the same column as other topics.
Type annotations (-t)
Running ros2 topic list -t appends a type annotation to each entry:
The type content inside the brackets is always dimmed, keeping focus on the topic name. Subscriber count blocks appear to the right of the type annotation.
Verbose mode (-v)
Running ros2 topic list -v produces a structured output with Published topics: and Subscribed topics: sections. DendROS detects this format automatically and applies minimal formatting:
- Section headers (
Published topics:,Subscribed topics:) are rendered bold - Type annotations inside
[...]are dimmed - Topic names, bullet points, and publisher/subscriber counts are left unchanged
No group color coding is applied in verbose mode — the structured format already groups topics by role.
Sorting (topic_sort)
By default, topics appear in the order ros2 reports them (alphabetical).

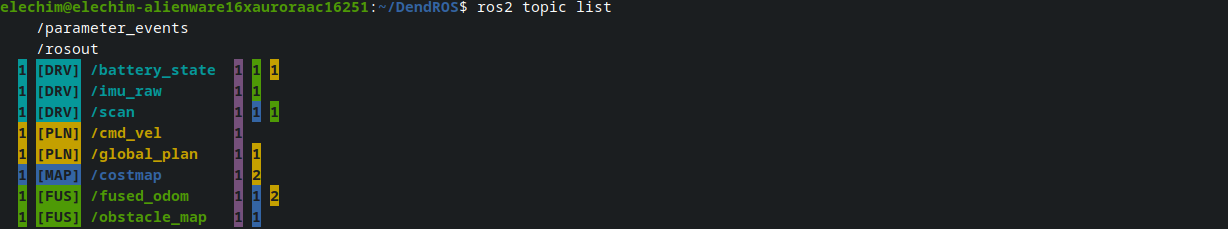

Setting topic_sort: group reorders topics:
- System topics first —
/parameter_eventsand/rosoutalways appear at the top - Matched topics grouped by color — groups appear in first-occurrence order; topics are alphabetical within each group
- Unmatched topics last — alphabetical
Empty lines from the original output are dropped in group sort mode.
Badge and style options
| Setting | Effect on topic list |
|---|---|
show_tag_cli: true |
[LOC] /topic_name — badge always to the left of the topic name |
tag_style: inverted |
Badge rendered with colored background |
Per-group show_tag: false |
Badge suppressed for that group only |
unmatched_color |
Topics with no matching publisher group shown in the fallback color |
unmatched_tag |
Badge shown next to unmatched topics (requires unmatched_color) |
dim_unmatched |
Topics with no matching publisher group dimmed (only when unmatched_color: null) |
topic_sort |
default = ros2 order (alphabetical); group = system first, then by publisher group |
