ros2 param describe Colorization

When you run ros2 param describe /node param_name, DendROS colorizes the output: the group badge and param name are highlighted, labels are dimmed so they recede, and section headers like Constraints: are rendered bold so the structure is immediately readable.


What it looks like

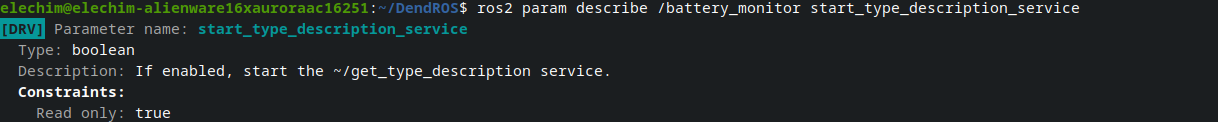

ros2 param describe /battery_monitor start_type_description_service

ros2 param describe colorized output


Badge and style options

Setting Effect on param describe
show_tag_cli: true Badge shown to the left of the Parameter name: line
tag_style: inverted Badge rendered with colored background
unmatched_color Unmatched node uses the fallback color for the param name
dim_unmatched Unmatched param name dimmed (only when unmatched_color: null)
