ros2 action list Colorization
When you run ros2 action list, DendROS automatically colorizes the output using the same group colors and badges configured for ros2 launch.

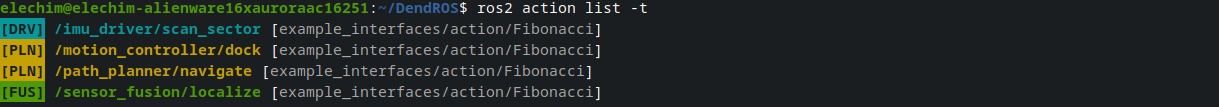

What it looks like
What gets colored
Actions under a node namespace
Actions whose path includes a node prefix are colored with that node's group color. For /bt_navigator/navigate_to_pose, DendROS looks up /bt_navigator in the color map using the same four-tier matching as ros2 node list (exact path, basename, wildcard path, wildcard basename).
A group badge is shown to the left of the action path when show_tag_cli is enabled and the group has a label.
Type annotations (-t)
Running ros2 action list -t appends a type annotation to each entry:
The type content inside the brackets is always dimmed, keeping the focus on the action name.
Badge and style options
| Setting | Effect on action list |
|---|---|
show_tag_cli: true |
[NAV] /bt_navigator/navigate_to_pose (badge always to the left) |
tag_style: inverted |
Badge rendered with colored background |
Per-group show_tag: false |
Badge suppressed for that group only |
unmatched_color |
Actions with no matching node shown in the fallback color |
unmatched_tag |
Badge shown next to unmatched actions (requires unmatched_color) |
dim_unmatched |
Actions with no matching node dimmed (only when unmatched_color: null) |
