ros2 node list Colorization
When you run ros2 node list, DendROS automatically colorizes the output using the same group colors and badges configured for ros2 launch. No extra setup is required — colors are shared across terminals through a small cache file that the pipe writes during launch.

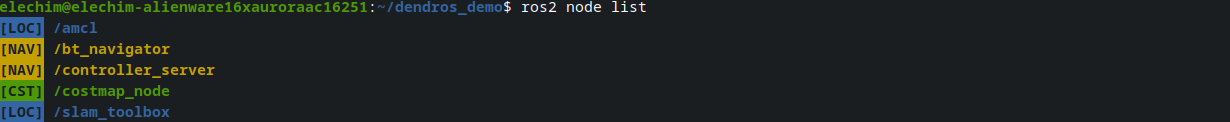

What it looks like
Bidirectional node name discovery
ROS 2 nodes sometimes register a different name in the graph than the launch process name. For example, slam_toolbox is launched as slam_node (the process name) but registers in the graph as /slam_toolbox. DendROS resolves this automatically:
- Forward: when a process name (e.g.
slam_node) is in your config and its log output reveals the graph name ([slam_toolbox]), both names are added to the cache. - Reverse: when a graph name (e.g.
slam_toolbox) is in your config and a line from an unknown process references it, both names are added.
After one launch, ros2 node list shows the correct color for /slam_toolbox even if your config only lists slam_node.
Badge and style options
All badge and color-mode settings from your config and global defaults apply:
| Setting | Effect on node list |
|---|---|
show_tag_cli: true |
[LOC] /amcl_node (badge before or after, per tag_position) |
tag_position: before |
Badge appears before the node name |
tag_position: after |
Badge appears after the node name |
tag_style: inverted |
Badge rendered with colored background |
Per-group show_tag: false |
Badge suppressed for that group only |
unmatched_color |
Unmatched nodes shown in the fallback color |
unmatched_tag |
Badge shown next to unmatched nodes (requires unmatched_color) |
dim_unmatched |
Unmatched nodes dimmed (only when unmatched_color: null) |
